Countach QV #GLA12997

brake ducts

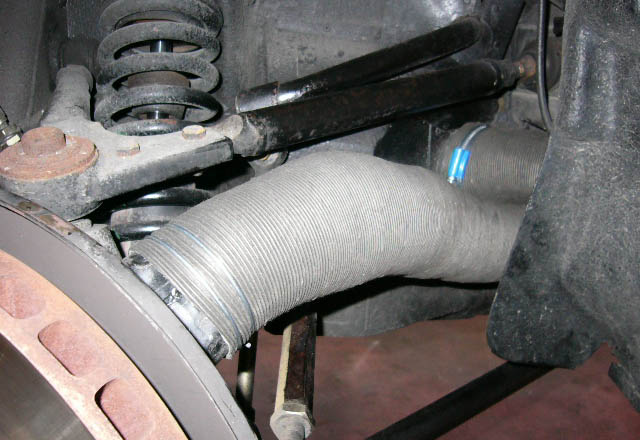

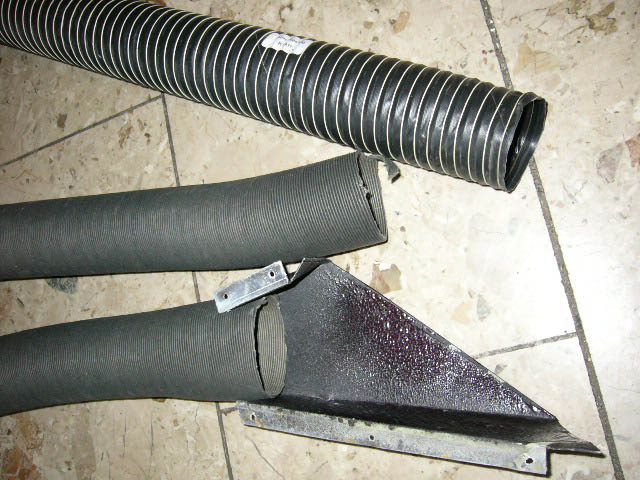

After almost 20 years the brake cooling hoses didn't look good any longer, first I wanted to replace them with a silicone layer hose with spiral wounded ss insert, but looking at the primitive way the duct was done I had to change my plans.

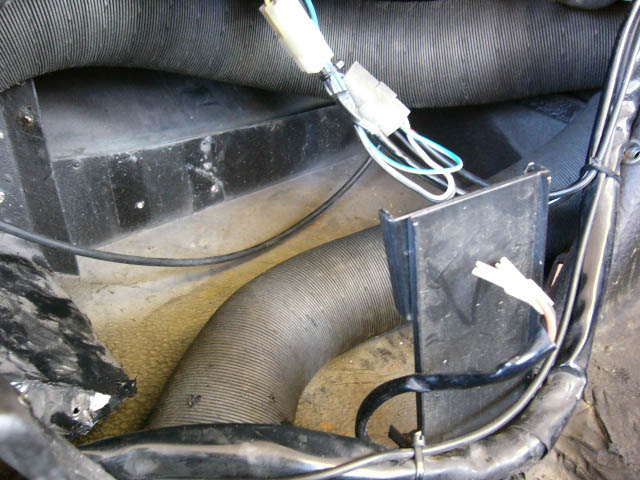

The problem is not the duct itself, there is a chassis strut behind the spoiler which restricts the usable height to only 4-5 cm. So I had to connect the new hoses the same primitive way the originals were.

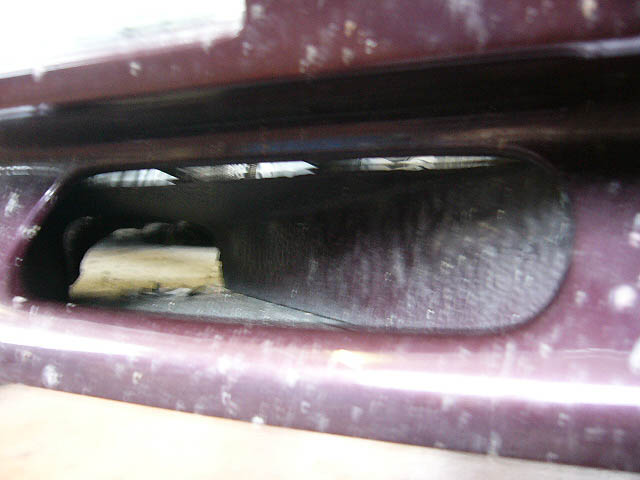

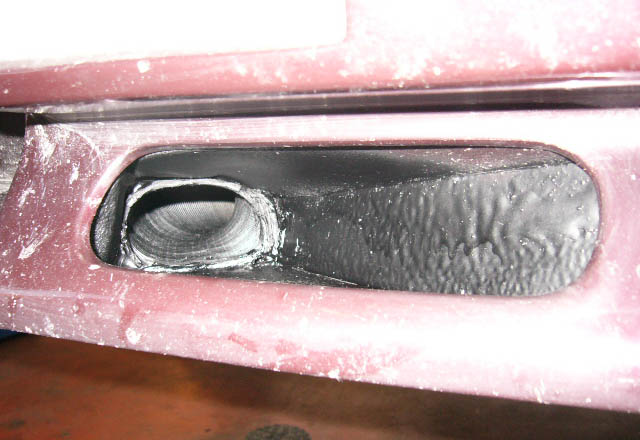

Of course I fitted the duct better to the inlet to assure the air goes into the hose and not into the front compartment.

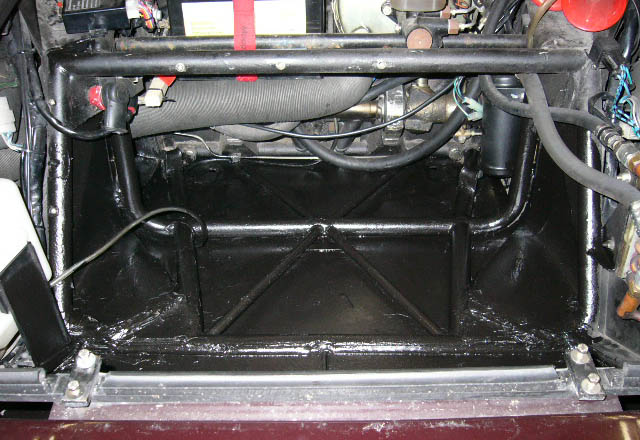

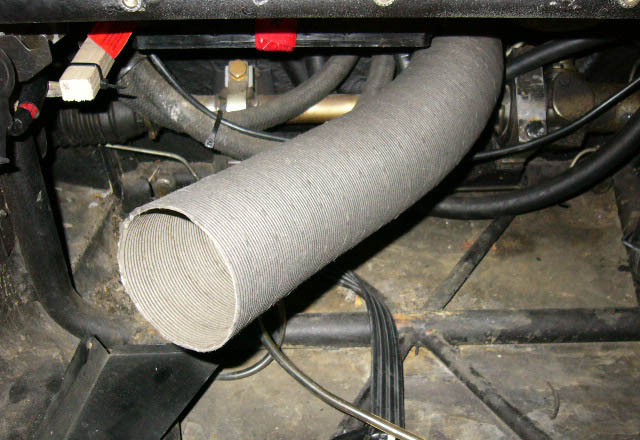

I replaced also the hose for the passenger room and painted the entire front compartment.
